WEEDEN BRASS HORIZONTAL

Weeden Manufacturing toy engines depending on the model had either a brass or nickel plated finish on the boilers. In 1926 electric heating elements were introduced as a safety feature, several models were given new models numbers when they included this feature.

Weeden No. 7


Thanks Rob M

Thanks Rob M.

Thanks Dave G.

7burner
Thanks Randy

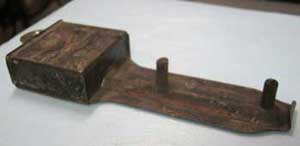

The No. 7 and No. 12's have a distinctive style of burner.

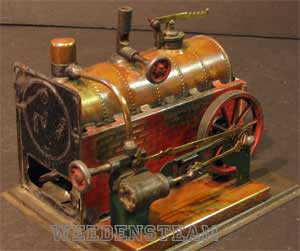

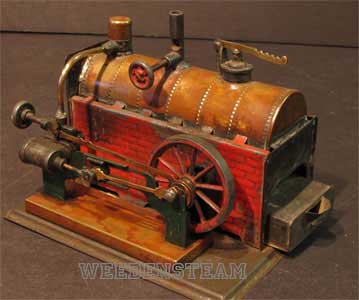

Weeden No.7 is a realistic looking engine that was a model of many power plants that supplied most factories of the time.  It has simulated brick boiler base with a cast iron front.  It operates with a unique engine where the cylinder is like a oscillating cylinder however it is stationary.  A cam rod runs from the crankshaft to a rocking lever which allows the cylinder to operate by means of the lever shifting allowing the steam to intake and exhaust.  In production from 1890 to 1907.

Ebay Sales of No. 7's

May /17 - Fair condition. - 25 bids - 137.50 USD

Jan. / 15 - Incomplete, good condition - 8 bids - 227.58 USD

Nov. / 15- Good condition - 37 bids - 371.00 USD

April / 14 - Good condition, with burner - 19 bids - 421.99 USD

Feb. /15 - Good condition, burner and box - 18 bids - 452.49 USD


Weeden No. 12


Thanks Steamrgene

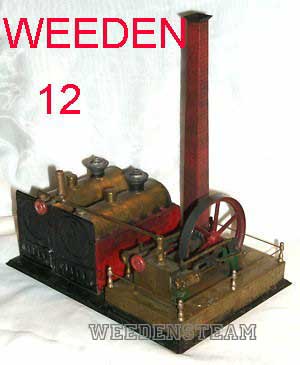

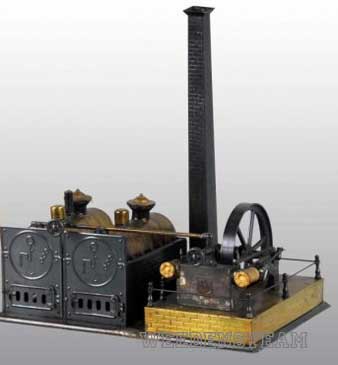

The Weeden No. 12 was advertised as a "Double Mill Engine", introduced in 1890 and produced into 1906, base is 9 3/4" X 6 3/4" and it stands 10 1/4" tall.

Ebay Sales of No. 12's

July / 12 - Needs Restoration, missing parts - 13 bids - 266.78 USD

Mar./17 - Good condition, with box and burners - 24 bids - 818.63 USD

Dec./12 - Good condition, with box, burners and accessories - 14bids - 1050.02 USD

Feb./10 - Good condition - 14 bids - 1200.00 USD - US bids

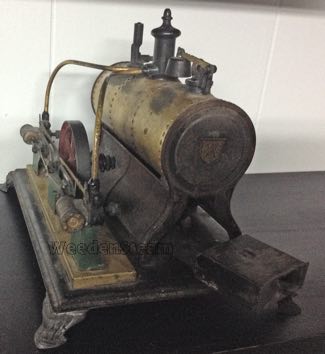

Weeden No. 13


Thanks Steamrgene

Weeden No 13
Thanks Jedd O.

Weeden no 13
Thanks Jedd O.
Weeden No. 13
Thanks Jedd O.

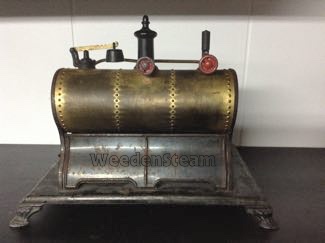

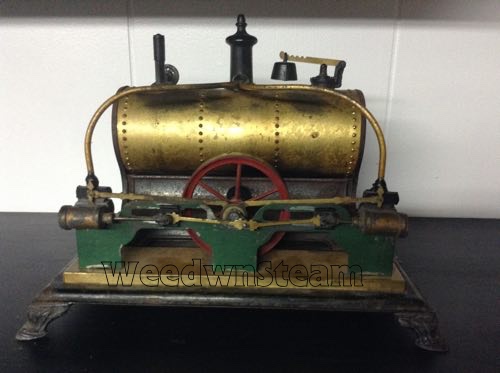

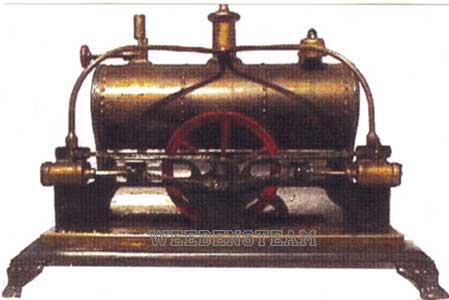

The Weeden No. 13 is one of the rarest Weeden engines, introduced in the early 1890's it was only produced for a year or two. Until recently it was believed only one was known to exist, it sold on eBay in the late 1990's for $3000. A second one has now come to light thanks to Jedd O. Base is 8 3/4" X 6 1/4", it stands 7" high.

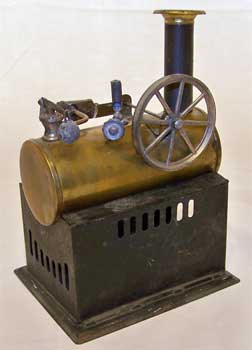

Weeden No. 21

Thanks Steamrgene

Thanks Steamrgene

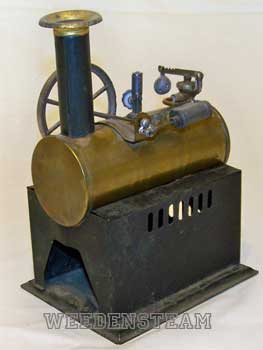

Weeden No. 21, was produced from 1894 until 1919, later versions were sold as No. 210. The No. 21 had a 1/4 turn style whistle, a 4 1/2" X 5 1/4" base and stood 7 1/2" high.

Ebay Sales of No. 21's

Dec./ 11 - Good condition - 17 bids - 310.00 USD


Weeden No. 45


Thanks Steamrgene

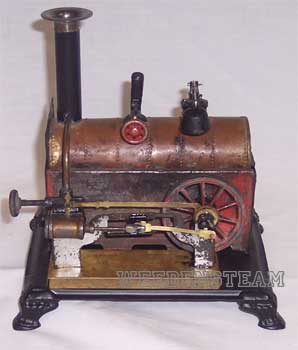

The Weeden No.45 has a simulated brick firebox painted in red enamel. It was introduced in 1898 and produced into 1913. Base is 5 3/4" X 4 1/2" and it stands 6 1/2' high.

Ebay Sales of No. 45's

March /12 - Good condition, missing cylinder and burner - 16 bids - 153.50 USD

March /12 - Good condition, complete with box, burner and instructions - 5 bids - 411.15 USD

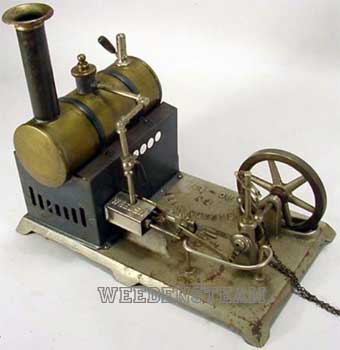

Weeden No. 47

Thanks Steamrgene

Thanks Steamrgene

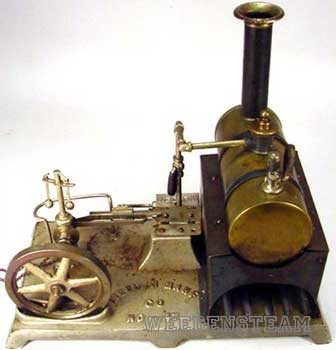

The Weeden 47 has a brass boiler on a 10 1/12" X 6" cast iron base, with a polished nickel governor. In production from 1898 to 1918.

Ebay Sales of No. 47's

March /13 - Poor condition, needs restoration- 7 bids - 332.51 USD


Weeden No. 59


Thanks Steamrgene

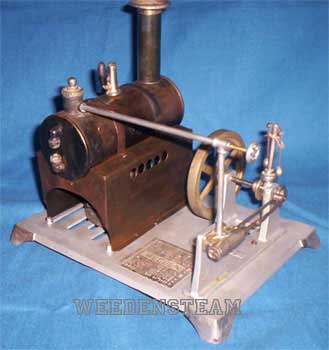

Weeden No. 59 is a larger version of the No. 58 model, the base measures 7" X 9 3/4" and it stands 9' high. Produced for two years, 1915 and 1916.

Weeden No. 210 - 211 - 212

Thanks Steamrgene

Thanks Steamrgene

These models have blued steel boilers. Weeden No. 210 was a later version of the No. 21, some models like the one above had an oversized base. This model has a lever wieighted safety valve. Introduced around 1919 and produced into late 1920's. The No. 211 and No. 212 have an over-style boiler supported by and upright. Later models with brass boilers were introduced as No. 310, No. 311 and 312 and have the same specs.

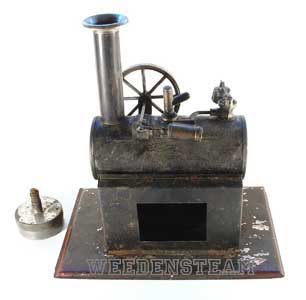

Weeden No. 275

Thanks Curt M.

Thanks Curt M.

Thanks Curt M.

Thanks Curt M.

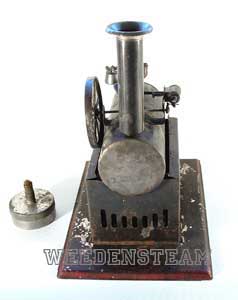

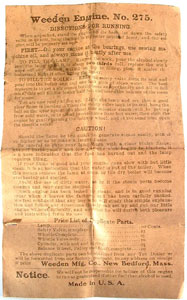

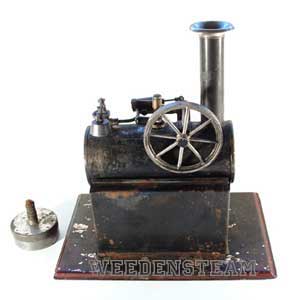

Little is known about the No. 275, it appears similar to the No. 21, 210 or 310 with a wide base, so would likely have been manufactured in the 1920's.

Ebay Sales of No. 275's

October /09 - Good condition, with burner. - 29 bids - 334.00 USD


Weeden No. 310 - 311 - 312

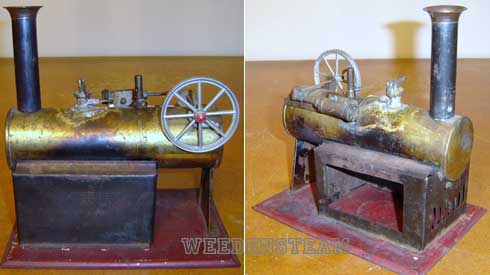

Weeden No. 311, thanks Dave G.

These are similar to the previously released No. 210, 211 and 212 but with brass boilers.

Weeden No. 310 is the smallest version of the three, the flat base is 4 1/2" X 5 3/4" and it stands 8 1/2" high with a 2 1/8" diameter flywheel.

Weeden No. 311 is the mid size version of the three, the flat base is 6" X 81/2" and it stands 8 1/2" high with a 2 5/8" diameter flywheel.

A similar engine labeled No. 410, was also manufactured with the same specs as the No. 311.

Weeden No. 312 is the largest version of the three, it has a raised style base 5" X 10 1/4" and it stands 8 1/2" high with a 3" diameter flywheel.

Introduced in early 1920's and produced into late 1920's.

Ebay Sales of No. 311's

Mar. /12 - Good condition - 13 bids - 135.50 USD

Jan. /12 - Poor condition, no burner - 31 bids - 157.50 USD

Jan./10 - Good condition - 18 bids - 202.50 USD

Jan./ 13 - Good condition - 17 bids - 300.00 USD


Weeden No. 702


Thanks Dave G.

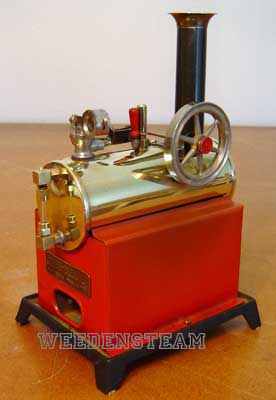

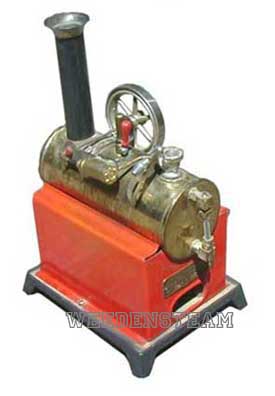

The Weeden 702 is electrically heated, has an iron base with a brass boiler, red steel firebox with a nickel plated balance wheel. It stands 9" high, base is 4 3/4" X 5 3/4". Introduced mid 1930's and continued to 1940.

Ebay Sales of No. 702's

June /09 - Missing smohestack - 5 bids - 21.50 USD

June/12 - Fair condition- 11 bids - 42.00 USD

June /12- Good condition, no cord- 13 bids - 58.33 USD

Jan. /12 - Good condition, missing cord - 11 bids - 82.11 USD

April /12- Clean, nice condition - 17 bids - 108.01 USD


Weeden No. 900


Thanks Steamrgene

Thanks Steamergene

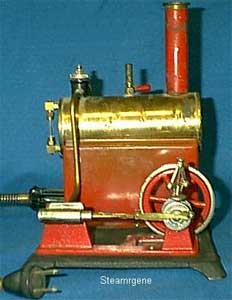

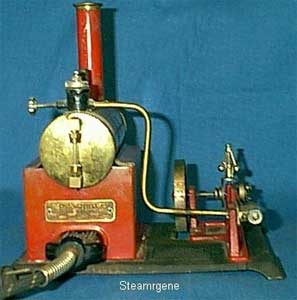

The Weeden No.900 is an electric model of the No. 58, the base is 6 1/2" X 8 3/4" and it stands 8 3/4" high. Produced from 1935 to 1940.

Ebay Sales

Jan./11 - Incomplete - 15 bids - $72.00 USD

Feb./10 - Good condition - 11 bids - $83.00 USD

May/10 - Excellent condition, cord, funnel, wrench, oil can - 8 bids - $117.00 USD


Weeden No. 902


Thanks Steamrgene

Thanks Steamergene

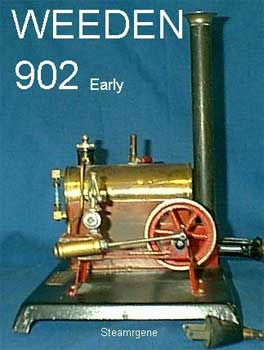

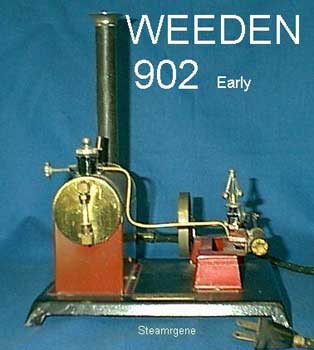

Weeden No.902 Early models

The early models of the Weeden No. 902 had a brass boilers, red iron firebox and engine brackets, the base was black enameled metal with a brass identification plate. Introduced late 1930's and continued to 1942.

Ebay Sales No. 902's

Sept. /09 - Good condition, missing stack - 4 bids - 32.52 USD

Jan. /15 - Fair condition, with cord - 16 bids - 66.00 USD

Oct./ 12 - Good condition, with cord - 30 bids - $83.90 USD

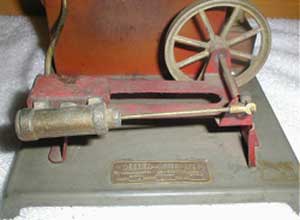

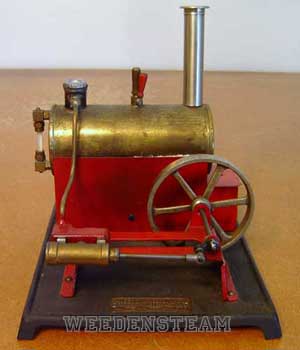

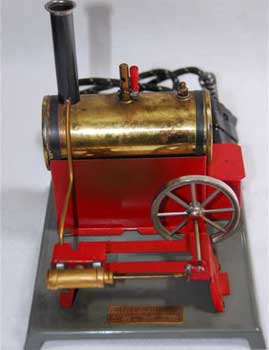

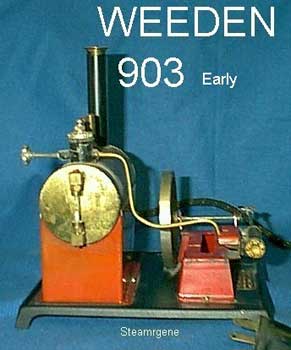

Weeden No. 903


Thanks Steamrgene

Thanks Steamergene

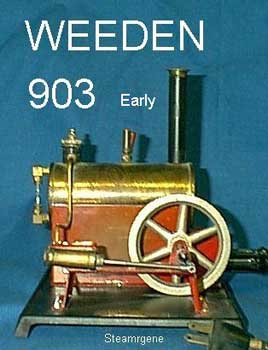

Weeden No. 903 Early model

Thanks Dave G.

Thanks driftwd

Later Models


Thanks Harvey L.

Thanks Harvey L.

More common style

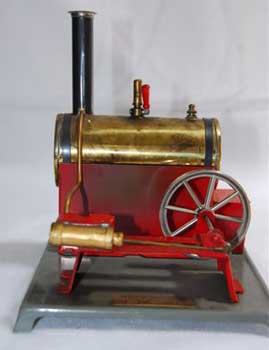

The Weeden No. 903 was actually two different styles, the less common model had a sight glass and throttle valve attached to a steam dome as shown in the top photos. The more common model only had a safety valve and whistle. Both have a brass boiler and painted metal firebox and base, stands about 9" high, with a
6 1/2" X 7 3/8" base. Produced late 1930's until 1942.

Ebay Sales

Nov./09 - Missing smokestack, rough, common model - 5 bids -$20.50 USD

Oct. /09 - Missing smokestack, common model - $35.00 USD

Jan. /15 - Missing smokestack, needs clean up, common model - 6 bids $42.00 USD

Jan. /15 - Needs clean up, missing smokestack, common model - 13 bids - $45.00 USD

July / 12 - Good condition, missing smokestack, common model - $53.78 USD

Back to Index

Weeden Steam Store
- Parts
- Books

Watch Them Run

albabe163 Weeden 900


Sight Glass Tubes & Replacement Units

Free Ebook
1.3 MB download


Thanks vtclover

New life for old 702

702 billboard
Thanks Rob M.

The owner of this No. 702 thought the side of the firebox looked like a billboard so decided to make it one.


Did You Know ?

Weeden Manufacturing often used the same parts on several different models. For example the engine frames on the No. 341 - 342 series and No.500 uprights are identical to the engine frames on No. 311 - 312 series horizontal models. This same frame was also used on some No.645 - 646 mobile tractors as well.


No. 500 engine


No. 311 engine

No. 646 engine
